SATELEC ACTEON IrriSafe IRR 20-21 Ultrasonic Irrigation Tips – 21mm, Size 20

SATELEC ACTEON IrriSafe IRR 20-21 Ultrasonic Irrigation Tips – 21mm, Size 20

The SATELEC ACTEON IrriSafe IRR 20-21 Ultrasonic Irrigation Tip is a specialized endodontic ultrasonic file designed for Passive Ultrasonic Irrigation (PUI) after root canal preparation. It enhances the cleaning and disinfection of the root canal system by activating the irrigating solution and promoting effective fluid movement, helping remove dentinal debris, smear layer, tissue remnants, and bacteria from areas that are difficult to reach with conventional irrigation.

With a 0.20 mm tip diameter and 21 mm length, the IRR 20-21 is designed to provide controlled ultrasonic activation while respecting the prepared root canal anatomy. Its non-sharp, blunt tip is designed to reduce the risk of damaging the canal walls or apical anatomy during irrigation.

Key Clinical Applications:

• Passive Ultrasonic Irrigation (PUI): Activates the irrigating solution inside the prepared root canal to improve cleaning efficiency.
• Smear Layer Removal: Helps eliminate the smear layer produced during mechanical root canal preparation.
• Dentin Debris Removal: Enhances the flushing of dentinal debris and tissue remnants from the root canal system.
• Root Canal Disinfection: Improves the distribution and hydrodynamic action of the irrigant, supporting effective canal disinfection.
• Final Irrigation: Particularly suitable for use after mechanical preparation as part of the final irrigation protocol.
• Difficult-to-Reach Areas: Helps improve irrigation in anatomical irregularities and areas that may be inaccessible to conventional instruments.

Product Features:

• Designed for PUI: Specifically developed for Passive Ultrasonic Irrigation procedures.
• 0.20 mm Diameter: ISO Size #20 configuration provides controlled access within prepared root canals.
• 21 mm Length: Suitable for root canal irrigation where a 21 mm working length is appropriate.
• Non-Cutting Design: Features a blunt, non-sharp working tip designed to respect the canal anatomy during ultrasonic activation.
• Ultrasonic Micro-Streaming: Promotes micro-currents and fluid movement within the irrigating solution to improve debris and smear-layer removal.
• Pre-Curvable: The IrriSafe file can be pre-curved to facilitate access to curved canal anatomy.
• Satelec Compatibility: Designed for use with Satelec/ACTEON piezoelectric ultrasonic systems equipped with an endodontic mode.

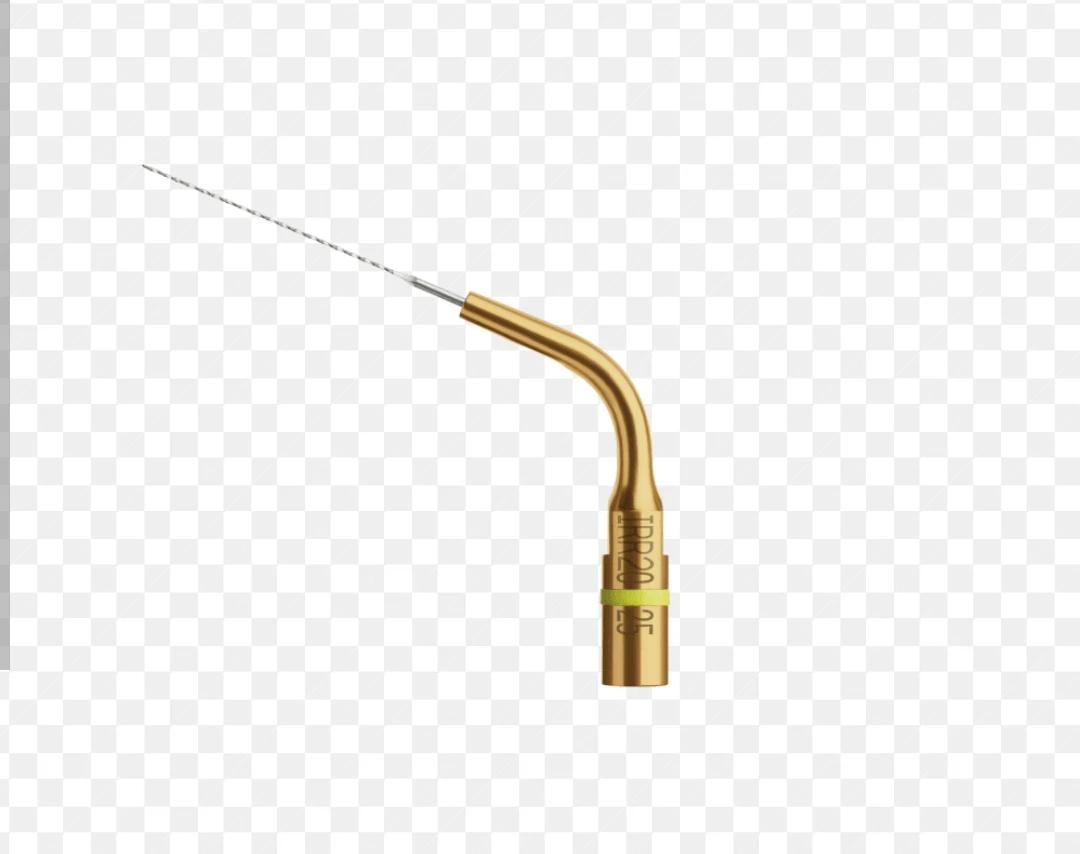

• Yellow Identification Ring: The IRR 20-21 version is identified by a yellow color ring.
• Sterilizable: The tips must be cleaned, disinfected, and sterilized before each use according to the manufacturer's instructions.

⚙️ Technical Specifications (Data Grid)

Package Contents

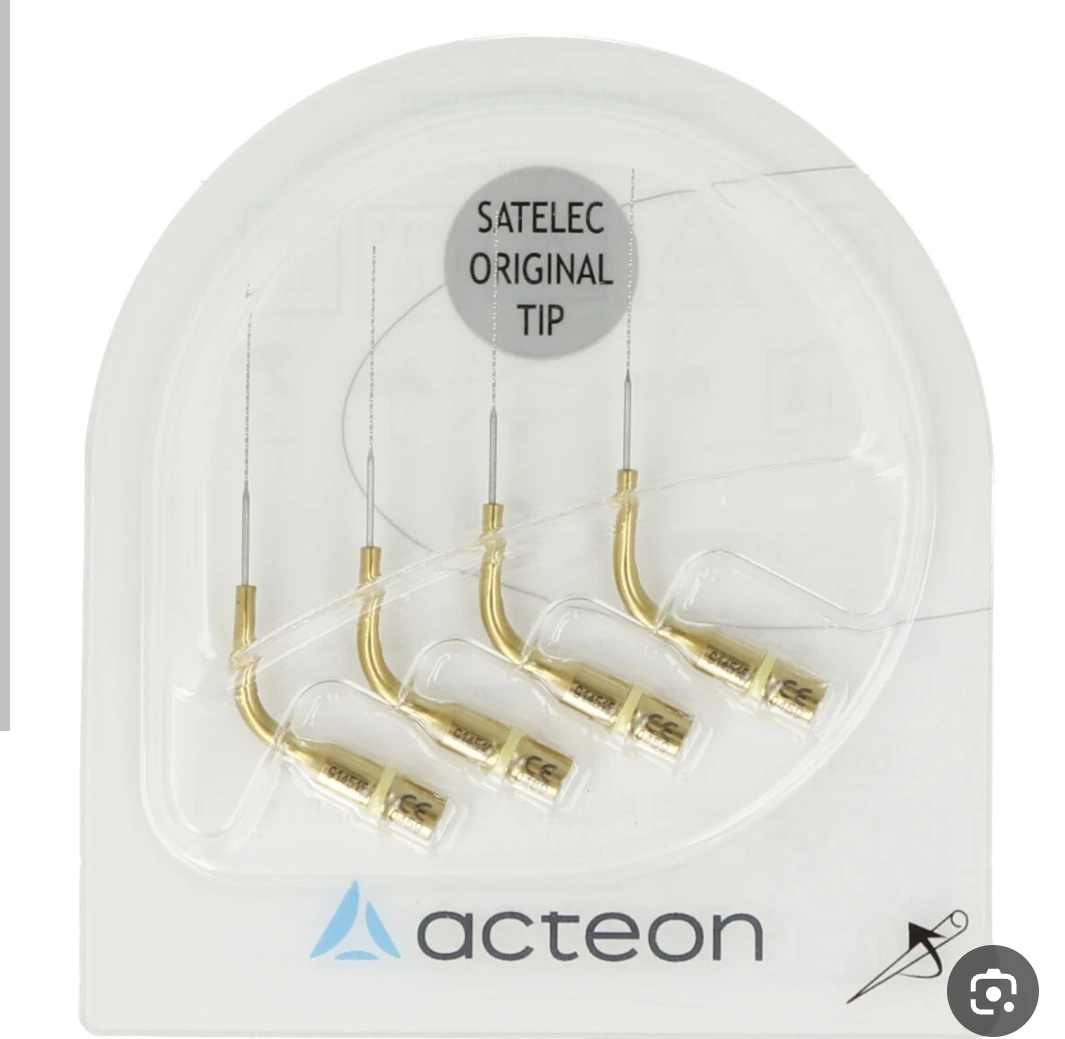

1 × Blister Pack containing 4 SATELEC ACTEON IrriSafe IRR 20-21 Ultrasonic Irrigation Files.
