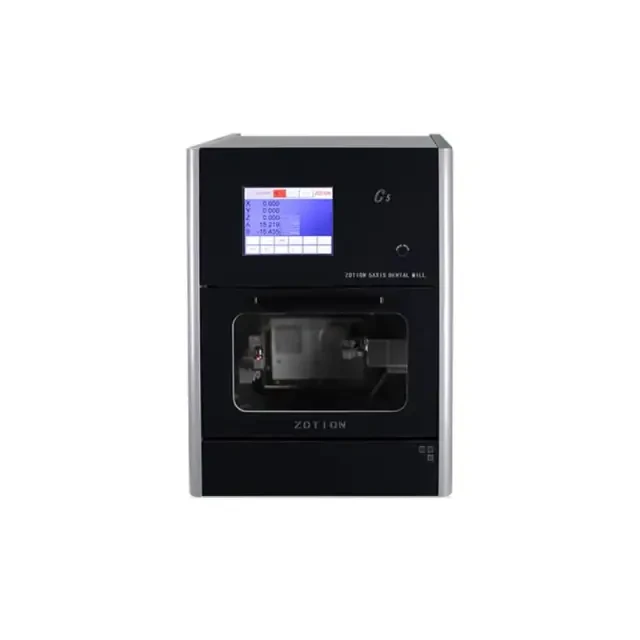

Zotion 5-Axis Dry Dental Milling Machine (Model: C5-E5)

(0) 0 Reviews 0 Orders 0 Wish listed

700,000EGP

Quantity :

Total price :

(Tax : )

Overview
Reviews

The Zotion C5-E5 5-Axis Dry Milling Machine is a state-of-the-art digital solution for dental laboratories and milling centers, engineered to deliver top-tier precision and efficiency in producing dental restorations, crowns, and bridges. It features an innovative 100-degree disc holder that saves up to 30% on material usage, alongside remote diagnosis and control capabilities.
Milling Materials:
Dental Zirconia Blocks
Wax
PMMA (Acrylic Resin)
PEEK (Polyether Ether Ketone)

⚙️ Technical Specifications (Technical Specifications Grid)

Technical Feature	Detailed Specification
Brand & Model	Zotion C5-E5
Milling Type	Dry Milling
Number of Axes	5-Axis simultaneous movement
Supported Disc Dimensions	Diameter: 98 mm / 98.5 mm, Maximum thickness: 80 mm
Spindle Speed	6,000 to 60,000 RPM
Axis Speed (XYZ)	Z-axis: 4,000 mm/min, XY-axes: 6,000 mm/min
Rotation Range	A-axis: ±360° / B-axis: +25° to -115°
Tool Magazine (Burs)	Automatic tool changer, holds 8 to 12 burs/tools
Machine Dimensions & Weight	Dimensions: 468 × 600 × 660 mm / Weight: Approx. 90 kg
Electrical Voltage	220V ±10%, Frequency 50/60 Hz
