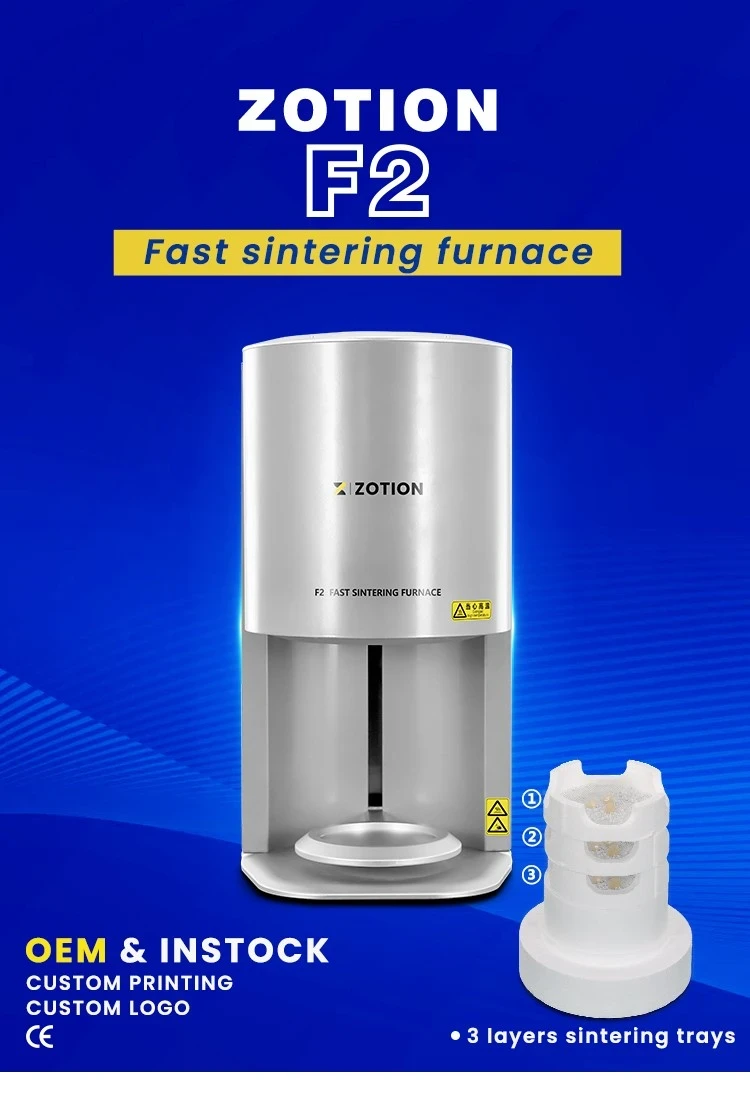

Zotion Fast Sintering Furnace (Model: F2)

(0) 0 Reviews 0 Orders 0 Wish listed

160,000EGP

Quantity :

Total price :

(Tax : )

Overview
Reviews

The Zotion F2 Fast Sintering Furnace is an economical, high-performance solution designed for dental laboratories and clinics. Combining rapid thermal responsiveness with exceptional temperature precision, it supports both fast and slow sintering modes to process dental zirconia, glass-ceramics, and glaze applications effortlessly.
Key Clinical & Laboratory Applications:
Zirconia Restorations: Perfect for single crowns, multi-unit bridges, and full-arch frameworks.
Aesthetic Finishing: Capable of handling glass-ceramic veneers and staining/glazing cycles.
Product Features:
Rapid Heating & Cooling: Achieves a maximum heating rate of up to 100°C/minute alongside an automatic fast-cooling technology to ensure high productivity and faster turnaround times.
Large Capacity Chamber: Measures 100×200 mm and accommodates a 3-layer sintering tray layout, allowing multiple restorations (up to roughly 90 crowns) to be fired simultaneously.
Smart Touchscreen Control: Features an easy-to-use digital interface with pre-programmed and customizable sintering profiles.
Power-Off Memory Protection: Automatically resumes the sintering cycle when power is restored following unexpected outages, preventing material loss.

⚙️ Technical Specifications (Data Grid)

Technical Feature	Specification Detail
Brand & Model	Zotion F2
Chamber Size	100 × 200 mm (3-layer sintering tray configuration)
Maximum Temperature	1650°C
Continuous Working Temperature	1600°C
Max Heating Rate	100°C / minute
Heating Element	High-Purity Silicon Molybdenum Bar (MoSi₂)
Temperature Control Accuracy	±1°C
Power Supply / Power Rating	220 VAC ±20% / 2500 W
Control System	Separate Full Touchscreen (Multi-segment programmable)
Dimensions & Weight	420 × 320 × 600 mm / Gross Weight: ~50 kg (with packaging)
